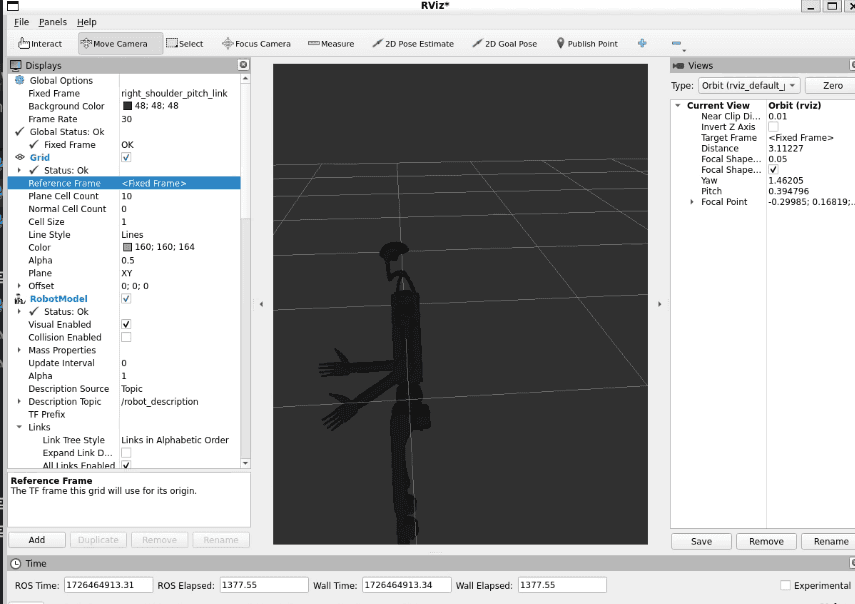

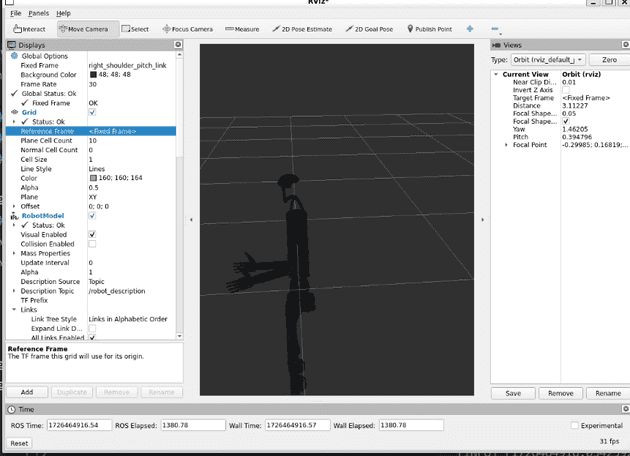

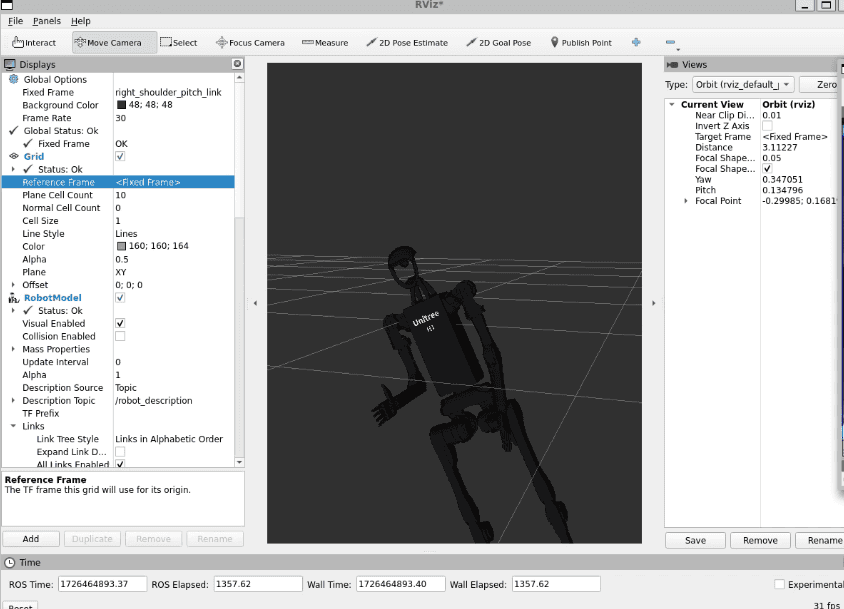

在rviz2中仿真并操控h1机器人

ffmpeg -f dshow -i video="1080P USB Camera" -preset ultrafast -tune zerolatency -vcodec libx264 -f mpegts udp:<ip>:<port>

import cv2
cap = cv2.VideoCapture('udp://<ip>:<port>')
while(cap.isOpened):
    ret, frame = cap.read()
    if ret:
        // do something

def angle_between_points( p0, p1, p2 ):
    a = (p1[0]-p0[0])**2 + (p1[1]-p0[1])**2
    b = (p1[0]-p2[0])**2 + (p1[1]-p2[1])**2
    c = (p2[0]-p0[0])**2 + (p2[1]-p0[1])**2
    if a * b == 0:
        return -1.0

    return  math.acos( (a+b-c) / math.sqrt(4*a*b) )

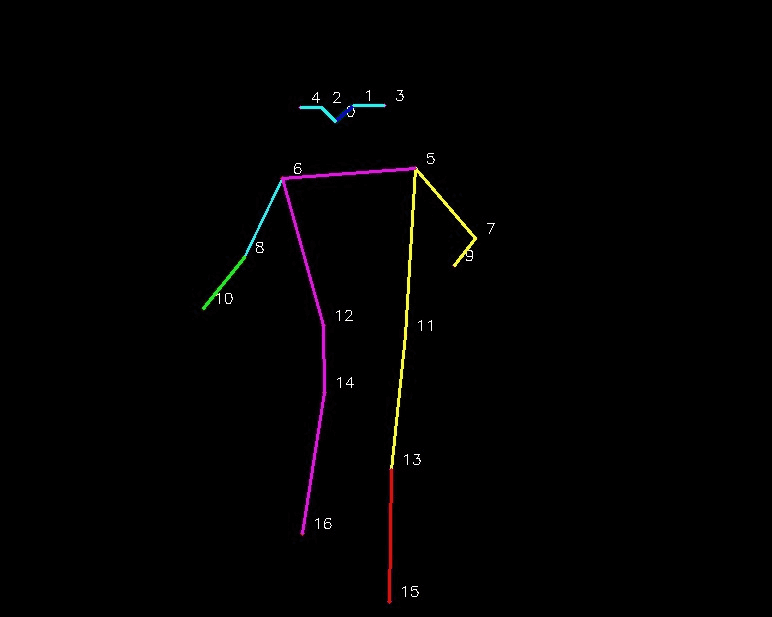

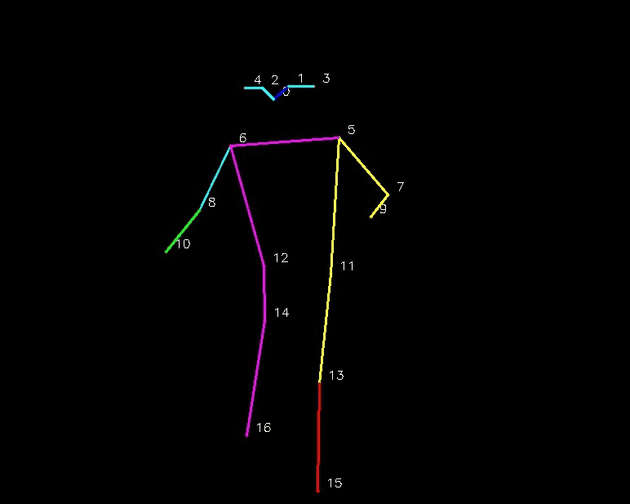

def get_angle_point(human, pos, steps=3):
    pnts = []

    if pos == 'left_elbow':
        pos_list = (5,7,9)

    for i in range(3):
        pnts.append((int( human[ pos_list[i]*steps]), int( human[ pos_list[i]*steps+1])))
    return pnts

def angle_left_elbow(human):
    pnts = get_angle_point(human, 'left_elbow')
    if len(pnts) != 3:
        print('component incomplete')
        return

    angle = 0
    if pnts is not None:
        angle = angle_between_points(pnts[0], pnts[1], pnts[2])
        print('left elbow angle:%f'%(angle))
    send_angle_to_local(angle)
    return angle

#!/usr/bin/env python3
import rclpy
from rclpy.node import Node
import threading
from sensor_msgs.msg import JointState
from math import pi
import socket


class RotateWheelNode(Node):
    def __init__(self, name):
        super().__init__(name)
        self.get_logger().info(f"node {name} init..")
        self.pub_joint_state_ = self.create_publisher(JointState, "/joint_states", 10)
        self._init_joint_states()
        self.pub_rate = self.create_rate(10)
        self.thread_ = threading.Thread(target=self._thread_pub)
        self.thread_.start()

    def _init_joint_states(self):
        self.joint_states_ = JointState()
        self.joint_states_.name = [
            "left_hip_yaw_joint",
            "left_hip_roll_joint",
            "left_hip_pitch_joint",
            "left_knee_joint",
            "left_ankle_joint",
            "right_hip_yaw_joint",
            "right_hip_roll_joint",
            "right_hip_pitch_joint",
            "right_knee_joint",
            "right_ankle_joint",
            "torso_joint",
            "left_shoulder_pitch_joint",
            "left_shoulder_roll_joint",
            "left_shoulder_yaw_joint",
            "left_elbow_joint",
            "left_hand_joint",
            "L_thumb_proximal_yaw_joint",
            "L_thumb_proximal_pitch_joint",
            "L_thumb_intermediate_joint",
            "L_thumb_distal_joint",
            "L_index_proximal_joint",
            "L_index_intermediate_joint",
            "L_middle_proximal_joint",
            "L_middle_intermediate_joint",
            "L_ring_proximal_joint",
            "L_ring_intermediate_joint",
            "L_pinky_proximal_joint",
            "L_pinky_intermediate_joint",
            "right_shoulder_pitch_joint",
            "right_shoulder_roll_joint",
            "right_shoulder_yaw_joint",
            "right_elbow_joint",
            "right_hand_joint",
            "R_thumb_proximal_yaw_joint",
            "R_thumb_proximal_pitch_joint",
            "R_thumb_intermediate_joint",
            "R_thumb_distal_joint",
            "R_index_proximal_joint",
            "R_index_intermediate_joint",
            "R_middle_proximal_joint",
            "R_middle_intermediate_joint",
            "R_ring_proximal_joint",
            "R_ring_intermediate_joint",
            "R_pinky_proximal_joint",
            "R_pinky_intermediate_joint",
        ]

        self.joint_states_.position = [0.0] * len(self.joint_states_.name)
        self.joint_states_.header.stamp = self.get_clock().now().to_msg()
        self.joint_states_.header.frame_id = ""
        self.joint_states_.velocity = []
        self.joint_states_.effort = []

    def get_angle(self):
        sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
        server_address = ("localhost", 12345)
        sock.bind(server_address)

        data, address = sock.recvfrom(4096)
        angle = float(data.decode())
        self.get_logger().info(
            f"received {data.decode()} from {address}, angle: {angle}"
        )
        return angle

    def _thread_pub(self):
        while rclpy.ok():
            index = self.joint_states_.name.index("left_elbow_joint")
            self.joint_states_.position[index] = self.get_angle() - pi / 2
            # self.joint_states_.position[0] += pi
            self.joint_states_.header.stamp = self.get_clock().now().to_msg()
            self.pub_joint_state_.publish(self.joint_states_)
            self.get_logger().info(f"publishing {self.joint_states_.position[index]}")
            self.pub_rate.sleep()


def main(args=None):
    rclpy.init(args=args)
    node = RotateWheelNode("move_h1_joints")
    rclpy.spin(node)
    rclpy.shutdown()
